Busbar Processing Machine
A busbar processing machine is essential equipment in electrical switchgear manufacturing. When panel current exceeds 125 amps, copper busbars replace standard cables to conduct electrical current with minimum resistance — thanks to their optimally designed cross-sectional profile.
In switchgear workshops, a busbar machine performs three critical operations: cutting, punching, and bending. The busbar punching machine must deliver exceptional accuracy, as copper busbars are costly materials subject to strict standards set by the Ministry of Energy and power distribution authorities. For this reason, precision is the top priority in the design and production of every bus bar processing machine used by switchgear manufacturers.
Get a Free Technical Quote
"*" indicates required fields

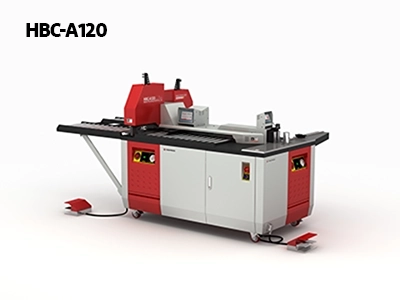

Model Series: HBC-A
Busbar Bending ,Cutting and Punching Machine
This series of Busbar machines are 3 in 1 machines, which means busbars could be fully processed (Bending, Cutting, Punching) on these devices. The most Important feature of this series of PAYAPRESS busbar machines is that 3 operators can work on all three stations simultaneously without interrupting the other one and the reason is that this series of machines are equipped with 3 power packs. The difference between Model: HBC-A120 and HBC-A160 is just the maximum size of busbar that can be processed, A120 is capable of process busbars up to 120*12 mm while the A160 can do more and the maximum busbar size is up to 160*15 mm.

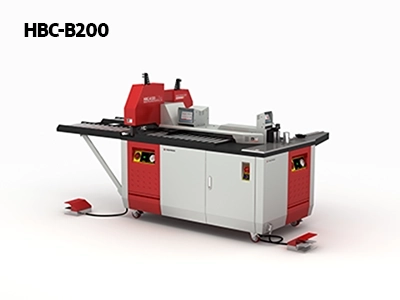

Model Series: HBC-B
Bending ,Cutting and Punching Machine
The HBC-B series busbar processing machines share the same structural design as the A series, with one key distinction — the operator can only work on one station at a time. This is because these busbar manufacturing machines are equipped with a single power pack, requiring each station to be operated separately.
Despite this difference, the copper bus handling capability remains consistent, making the HBC-B a practical alternative to the HBC-A at a more accessible price point. For workshops that need a reliable copper busbar punching machine without the higher investment of the A series, the HBC-B is a solid cost-effective choice for industries with tighter budgets.

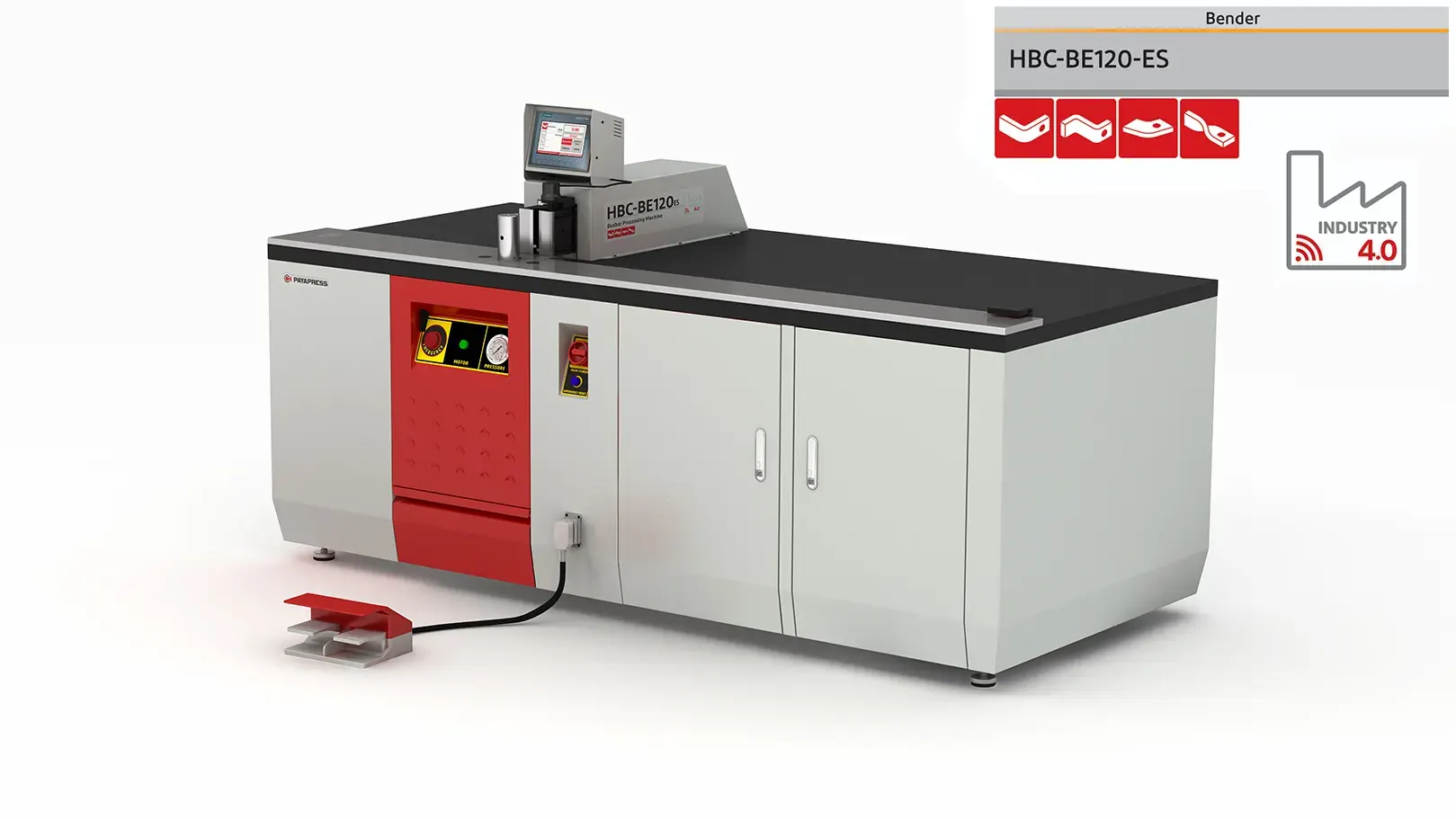

Model Series: HBC-BE
Busbar Bending Machine
Busbar bending machines are among the most widely used equipment in electrical switchgear manufacturing. PAYAPRESS offers two models of bus bar machine benders capable of handling copper busbars up to 120×12 mm and 160×15 mm cross-sections.
Whether working with a busbar 125 amp rated system or higher-capacity installations, busbars must be bent into various shapes to fit correctly inside electrical panels and switchgears. This is where a dedicated copper machine for bending becomes essential.

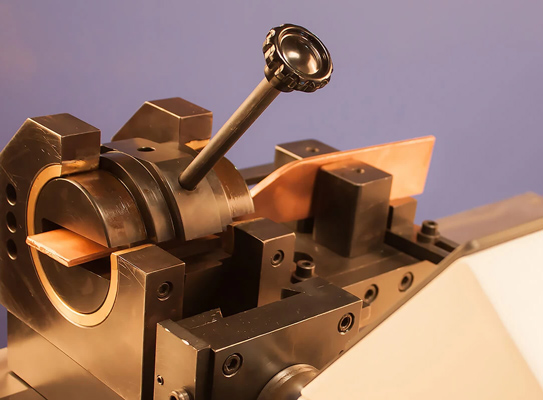

Each hbc machine in this lineup comes equipped with a full range of bending molds — including Z-shape, Twist, and Edge-Bending molds — covering all bending requirements on the workshop floor. Much like a bus puncher is built for precision hole placement, these bending machines are engineered to deliver accurate, repeatable bends that meet the strict demands of switchgear manufacturers.

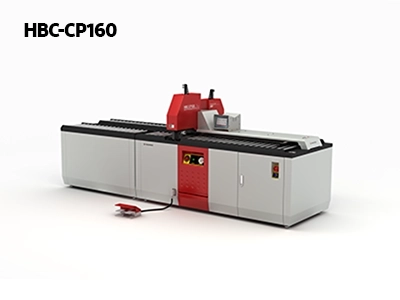

Model Series: HBC-CP
Busbar Cutting and Punching Machine
Like other series, the CP series cnc busbar processing machine lineup includes two models, capable of cutting and punching busbars up to 120×12 mm and 160×15 mm. Each unit is equipped with two power packs, allowing operators to work on both stations simultaneously — significantly speeding up the overall process.
The busbar cutting machine and punching station both benefit from a built-in “Programmable Length Stopper,” which ensures exceptional precision in the positioning of every cut and hole. This stopper supports up to 20 programmable positions, giving operators full control and repeatability across high-volume production runs.
NEED
CONSULTATION?
Feel free to contact us and
ask your question, its absolutely free.
"*" indicates required fields
Frequently Asked Questions about busbar processing machine
What is a busbar processing machine and what does it do?
A busbar processing machine is industrial equipment used in electrical switchgear manufacturing to cut, punch, and bend copper busbars. These machines are essential when panel current exceeds 125 amps, where copper busbars replace standard cables for efficient current transfer.
What is the difference between a 3 in 1 busbar machine and separate machines?
A 3 in 1 busbar processing machine combines cutting, punching, and bending into a single unit, saving workshop space and reducing production time. Separate machines, while effective, require more floor space and operator movement between stations.
What sizes of copper busbars can PAYAPRESS machines handle?
AYAPRESS busbar processing machines support copper busbars up to 120×12 mm and 160×15 mm depending on the selected model, covering the majority of switchgear manufacturing requirements.
What is the difference between HBC-A and HBC-B series?
Both series are capable 3 in 1 busbar machines, but the HBC-A allows simultaneous operation across all stations using multiple power packs, while the HBC-B operates one station at a time with a single power pack — making it a more economical option for smaller workshops.
What bending shapes can PAYAPRESS busbar bending machines produce?
PAYAPRESS machines support Z-shape, Twist, and Edge-Bending molds among others. The horizontal copper bar bending machine models handle busbars up to 160×15 mm, covering virtually all bending needs in switchgear panel assembly.
How precise are PAYAPRESS busbar cutting and punching machines?
The CP series busbar cutting machine and punching stations feature a built-in Programmable Length Stopper with up to 20 programmable positions, ensuring highly accurate and repeatable cuts and hole placements.
Where can I find reliable busbar processing machines suppliers?
When looking for busbar processing machines suppliers, it is important to choose companies that offer certified equipment, after-sales support, and machines compatible with international switchgear standards. PAYAPRESS is a trusted supplier with a proven track record in the industry.
How can I become a PAYAPRESS representative?
To Become a PAYAPRESS Representative, you can contact the company directly through their official channels. PAYAPRESS actively seeks regional partners and distributors who share a commitment to quality electrical manufacturing equipment.
