How much does the HBC-PC120-EH hydraulic busbar bending machine cost?

For detailed pricing information, please contact the PAYAPRESS sales department directly at sales@payapress.com or by phone at +971556957664. Pricing may vary based on selected optional attachments such as the cable crimping unit and specific configuration requirements.

What is the maximum busbar size that can be processed on this machine?

The HBC-PC120-EH can cut and bend copper and aluminum busbars up to 120×12 mm. The punching station supports circle dies from M6 to M18. For facilities requiring larger busbar capacities, PAYAPRESS also offers the HBC-CP160-EH which handles busbars up to 160×15 mm.

What is the Programmable Length Stopper and is it available on this machine?

The Programmable Length Stopper is a digital positioning system that allows operators to pre-set exact busbar lengths for cutting and bending operations, eliminating manual measuring and significantly improving repeatability across production batches. The HBC-PC120-EH base model (EH) includes a handy manual length stopper. The programmable electronic version is available on the ES variant — please contact PAYAPRESS to confirm current configuration options.

What type of hydraulic oil does this machine require?

The HBC-PC120-EH requires Hydraulic Oil H68, with a reservoir capacity of 30 liters. Using the correct oil grade ensures optimal hydraulic system performance and protects internal components from premature wear. The oil level should be checked regularly as part of routine maintenance.

How can I get more information or request a quote for this machine?

You can contact the PAYAPRESS sales team directly by email at sales@payapress.com or by phone at +971556957664. The team is available to answer technical questions, recommend the right machine model for your application, and provide a detailed quotation including optional accessories and shipping to your region.

Home ⪢ Economic Busbar Machine⪢ HBC-PC120

Get a Free Technical Quote

"*" indicates required fields

HBC-PC120

What Is the HBC-PC120?

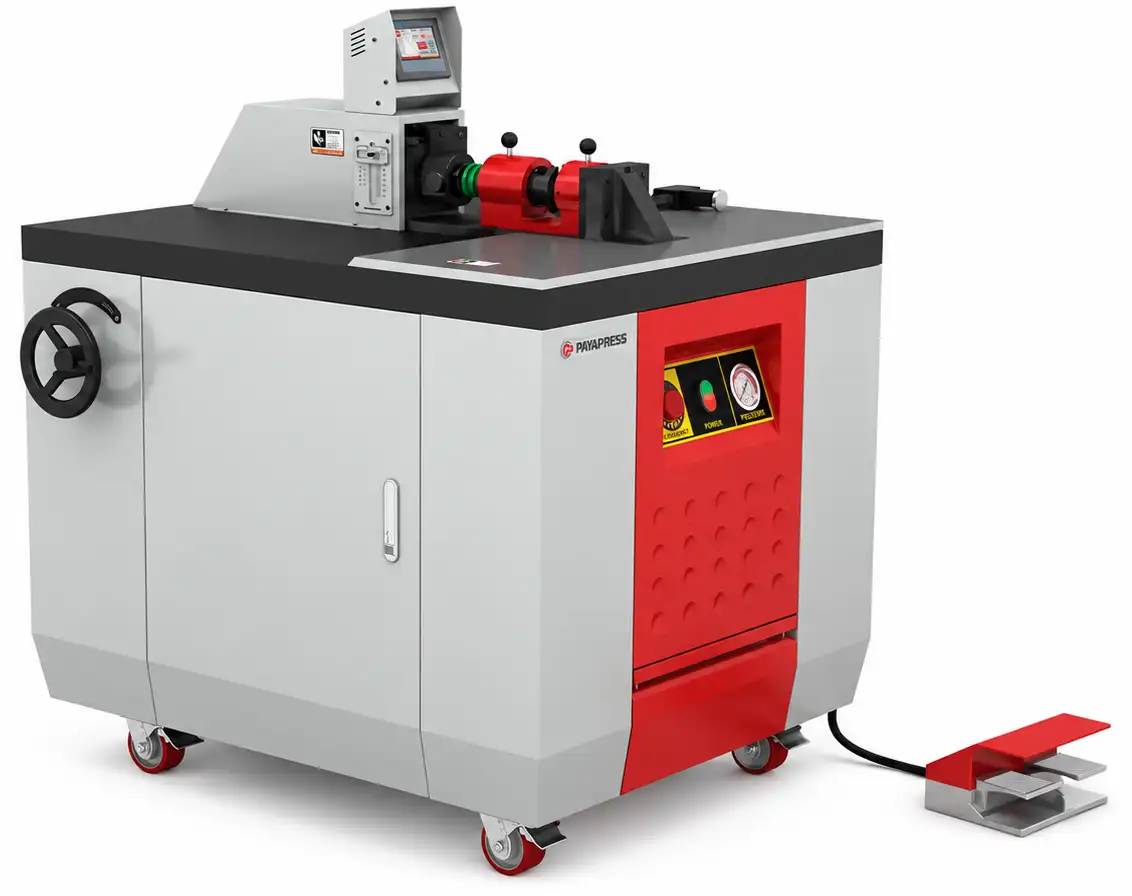

The HBC-PC120 is a compact, economical busbar machine that performs every bus bar operation — and cable work — one at a time on a single power pack, simply by swapping heads. As a portable workshop busbar machine, it’s built for shops and job sites that need flexibility without a large footprint. Think of it as a portable, economical “baby HBC-A120”: the same core capability, scaled down into an economical busbar machine that’s easy to move and easy to justify.

Cut, Punch and Bend Copper & Aluminum Busbars

The HBC-PC120 that machine is part of our economical busbar machines lineup. handles all three core bus bar operations — cutting, punching and bending — on copper and aluminum up to 120 × 12 mm. Punching uses circle dies from M6 to M18, with oval and rectangle dies available as an option. An electronic bender controller with a high-accuracy encoder keeps bend angles consistent piece after piece.

Five Interchangeable Heads, Changed in Seconds

One machine, five quick-change heads: cutting, punching, bending, cable crimping and cable cutting. A hand-wheel raises and lowers the bus bar axis to seat each head correctly. The fast tool-change design means moving from one operation to the next takes only seconds — so a single compact unit does the work of several machines.

INTRODUCTION

TECHNICAL INFORMATION

Cable Crimping and Cable Cutting

Two of the five heads take the HBC-PC120 beyond bus bars: it crimps cables up to 300 mm² (spec table below lists 240 mm² — please confirm) and cuts cable up to 240 mm². That makes it the only machine in the range to handle both bus bar prep and cable work in one unit. For contractors who do both jobs, that’s a direct saving in floor space and equipment cost.

Everything the HBC-PC120 Does, Head by Head

Across its five quick-change heads, the HBC-PC120 covers a full range of bus bar and cable operations on one hydraulic base unit:

Busbar cutting head — cuts copper and aluminum bus bars up to 120 × 12 mm
Busbar punching head — punches with circle dies from M6 to M18 (oval/rectangle optional), aided by a laser center finder for precise positioning
Busbar bending head — bends with an electronic controller and high-accuracy encoder for repeatable bend angles
Cable crimping head — crimps cable up to 300 mm² (confirm: spec table shows 240 mm²)
Cable cutting head — cuts cable up to 240 mm²HBC-PC120 Specifications

HBC-PC120 Specifications

Two figures below still need sign-off before this goes live: cable crimping capacity (300 mm² vs. 240 mm²) and operating pressure (200 bar vs. 150 bar), since the body copy and the previous spec sheet don’t agree.

Compact, single-phase and priced to compete, the HBC-PC120 is an economical busbar machine for shops that need bus bar and cable capability without investing in several separate machines. Request a quote or download the full catalog to get exact pricing and lead times.

HBC-PC120-EH

Max capacity

120 × 12 mm

Power

1.7 kW

Max die

≤Ø20 mm

Machine weight

600 kg

Process & capacity

FunctionsCutting + Punching + Bending

Bending force (kN)160

Cutting force (kN)160

Punching force (kN)160

Width range (mm)15–120

Thickness range (mm)3–12

Punching range (mm)4.5–20

Max. punching diameter per stroke (mm)≤20

Hole spacing control accuracy±0.2

Punching mold7

Cutting mold1

Disposable cross-sectional area (mm)120 × 12

Max. busbar size (L × W × T) (mm)4000 × 120 × 12

Max positioning speed of X (m/min)N/A

Max stroke of X-axis (discharge)450

Max effective stroke of Y-axis (Puncher)60

Strike cylinder stroke (Cutter)88

Strike cylinder stroke (Puncher)38

Strike cylinder stroke (Bender)80

Stroke speed Cutter (m/min)0.39

Stroke speed Puncher (m/min)0.39

Stroke speed Bender (m/min)0.39

MaterialAluminum & copper

Power & hydraulics

Voltage220 V AC

Total motor power (kW)1.7

Frequency50 Hz

Max hydraulic pressure (bar)200

Hydraulic oil typeISO VG 68

Oil capacity30 L

Hydraulic pumpArafan

MotorElectrogen

Hydraulic station power1 × 1.5 kW

High/low pressure combination pump, hydraulic valveKASTAS pump / Duplomatic (Italy) valve

Electronics & control

Industry 4.0Ready

HMI for Cutter and Puncher (7″, axis motion control)N/A

HMI for Bender (4.3″ / BE 7″)Siemens

PLCSiemens

SensorAutonics

Control buttonsRaad

AC contactorSchneider

Linear sliderTBI

Ball screwN/A

Machine & operation

Model typeHBC-PC120-EH

Stepper typeN/A

Main machine weight (kg)600

Machine footprint (L × W × H, mm)1200 × 1000 × 1365

Mounting typeWheel

Pipe jointRN

Sealing elementKASTAS
