1

Control console

To give directions and drawings to the device

3

Punching and Cutting station

To cut and punch busbars up to 200*15 mm

2

Main key

To cut off the main power in dangerous times

4

Emergency stop button

To stop the machine in case of emergency

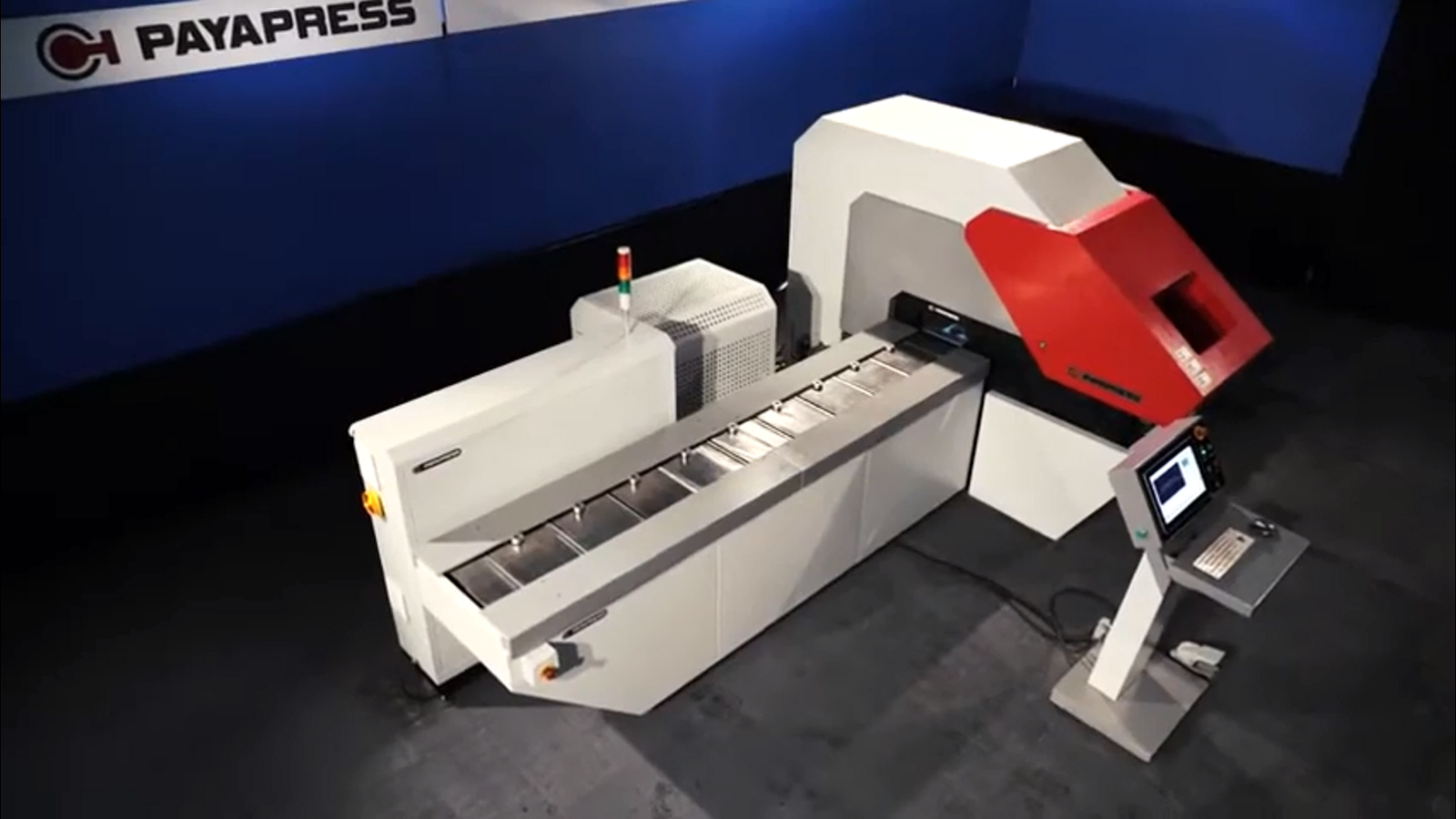

CNC Punching Machine
CNC Punching Machine

Model: HBC-CP.CNC200

CNC Punching Machine & CNC Cutting Machine

2 in 1 CNC Machine

What is CNC Busbar Machine?

CNC punching machine always comes first when we are talking about high speed, high precision and high technology. Payapress CNC busbar processing machine is a user-friendly device which gives you the option to cut and punch busbars without interfering the process and make the perfect result. The HBC – CP – CNC200 is a CNC machine designed and programmed for precision drilling and cutting of copper busbars. All products in this CNC Punching/Cutting machine are produced automatically.
How to operate

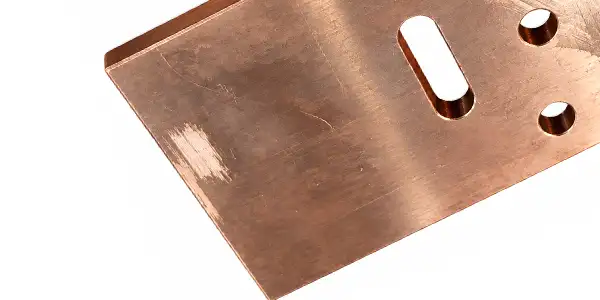

 1-Cut
2- Punch
The busbar must be manually pushed into the machine towards the inlet and on the rollers. At this stage, the clamp takes the location of both sides of the busbar for proper positioning. After the punching operation, the busbar is released and guided out automatically. To continue working on another busbar continuously, the clamp goes backwards by the program given to it and performs the operation on the next busbar. This program is given by the operator to the computer connected to the device. Therefore, the operator needs CNC system programming skills. Scheduled items can be stored in memory as codes and numbers or alphabetically and used for projects. If you are looking forward to Bend busbars as well, you should check out our Busbar Bending Machine that comes with high-tech equipment and multiple bending molds.

INTRODUCTION

TECHNICAL INFORMATION

CNC Busbar Machine Features

CNC stands for Computer Numerical Control. Unlike other machines, in which the specified sequences are performed according to an immutable system, CNC machines have a programmable computer. After coding for these different programs, they can be used in different courses. The process is constantly monitored by a programmable display (PLC) that receives, sends and compares data. This means that the PLC is a place to receive and enter data from different registrars. This information and data is processed by a computer. After reaching the values of the preset parameters, the PLC signals the relays, moving parts, etc. to make them function properly, so the positioning, operating speed of the components and other elements are all done by the PLC. Punching and cutting operations in this machine are performed by installed software developed by Siemens and the manufacturer. The machine automatically transfers all this data to the drive and records it in the CNC records section. Length measuring in both, cutter and puncher stations is done by “Ball Screw and Servo Motors”. They will provide more accuracy in both punching and cutting processes.

HBC-CP.CNC200 MODEL
Cutting and punching busbars simultaneously Function
Up to 200 x 15 mm Cutting capacity
Busbar size :200 x 15 mm Circle dies :M6 UP M20 Punching capacity
CNC controller Puncher center finder
Ball screw and servo motors Length measuring in puncher and cutter
1 power pack Double acting system Hydraulic system
280 Bar Operating pressure
1 x 11 Kw Power rating
380 Volt – 3/50 Hz Voltage
Hydraulic oil H68 – 90 liters Oil
537 x 240 x 188 (H) cm Main desk dimension

FIND YOUR SOLUTION

FAQ's

Frequently asked questions

What is the max force of this device?

The maximum force of this device is 300 {kn}

How is the length measuring is done?

Length measuring in both cutter and puncher is done by ball screw and servo motors.

What is the punching and cutting capacity of this device?

The punching and cutting capacity of this device is up to 200 × 15 mm.

What are the circle dies maximum size?

Circle dies sizes are from M6 up to M20.

How much is the operating pressure?

The operating pressure of this device is 280 Bar
