1

Rollers

Rollers at two side of the puncher for ease of busbar movement

2

Foot Pedal

It is used to move the hydraulic arm back-forward and to make operation on automatic mode

3

Puncher station

To punch copper busbars up to 160*15mm simultaneously

4

Cutter station

To punch copper busbars up to 160*15mm simultaneously

Busabr Punching Machine
Busabr Punching Machine

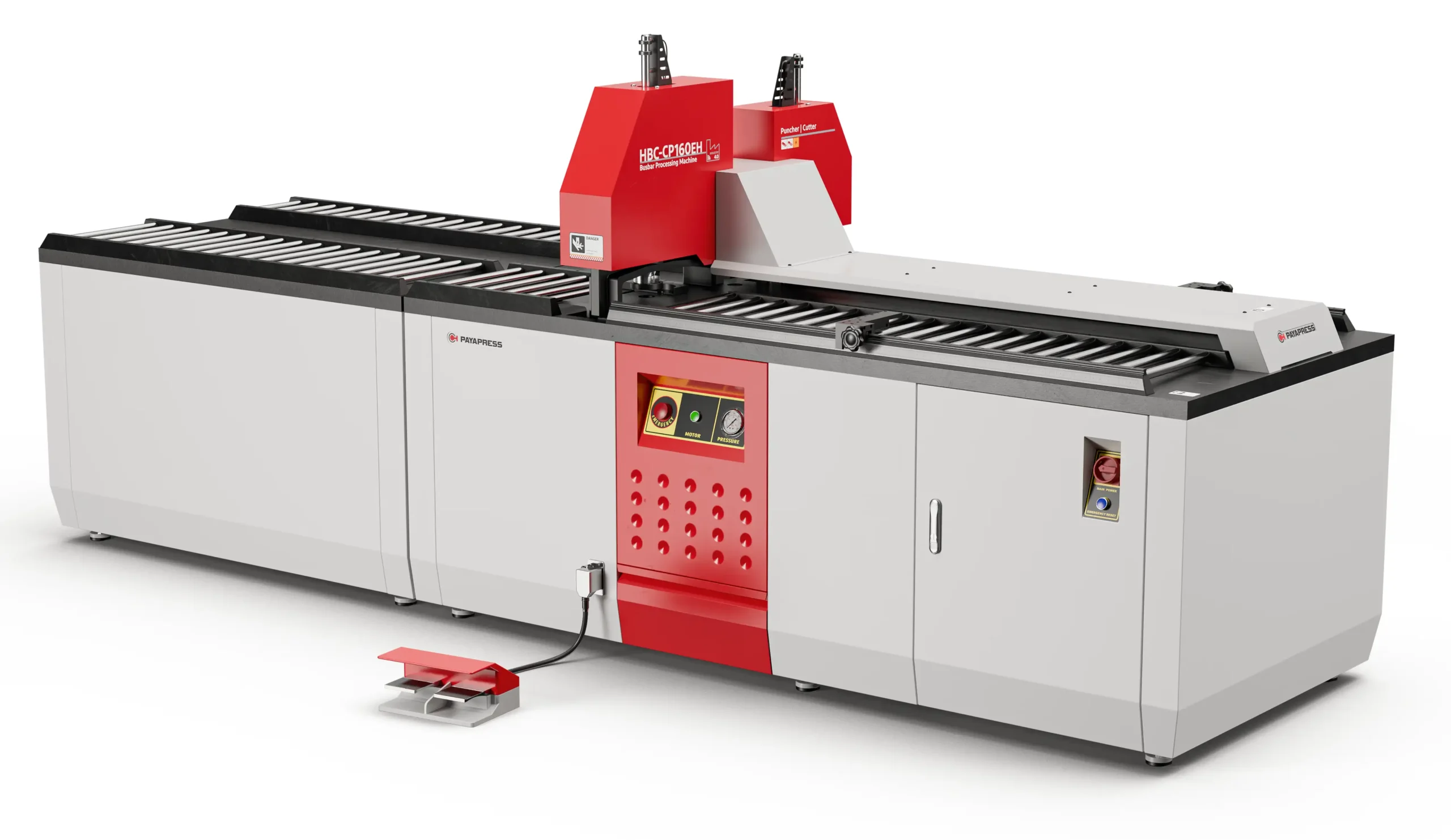

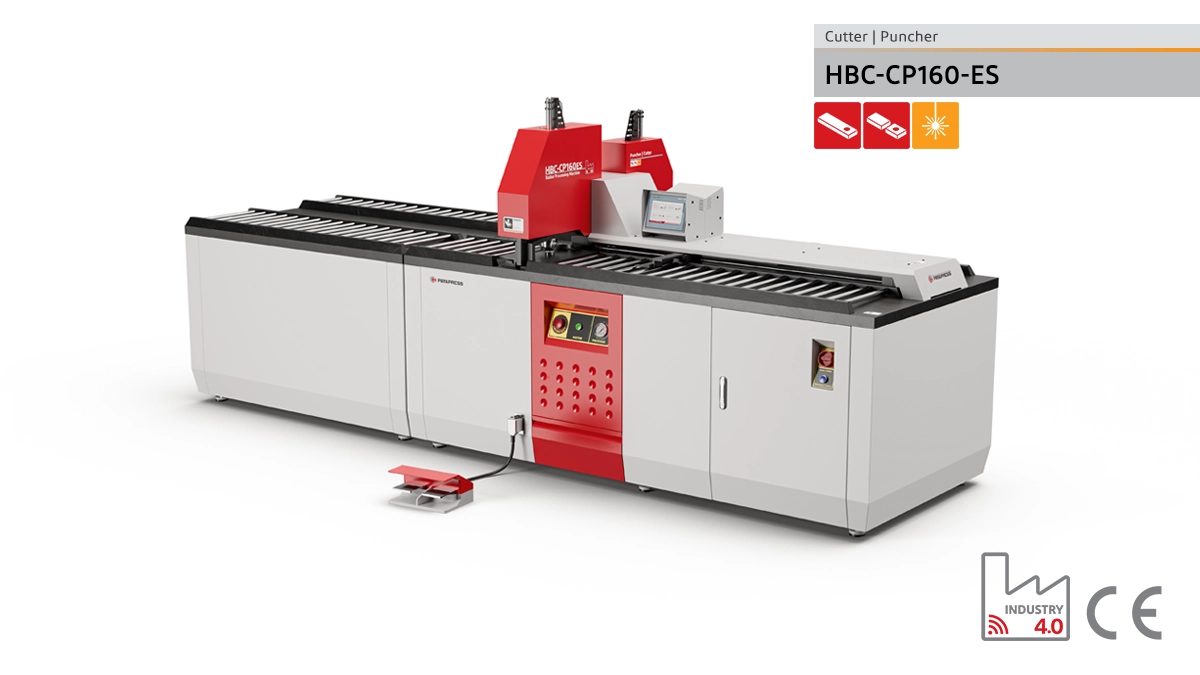

Model: HBC-CP160 ES/EH

Busbar Punching Machine & Busbar Cutting Machine

Busbar Punch Cutting Machine

Copper Punching and Copper Cutting Machine
PAYAPRESS busbar machines offer high quality solutions when processing copper and aluminum busbar. Whether you are Bending, Punching or Cutting busbar the PAYAPRESS range of machinery will make the task simpler, cleaner and quicker. HBC-CP160 is a busbar processing machine that includes cutting and punching stations only, suitable for the ones who do not want to bend busbars. This machine has many features that we are going to explain further. Payapress copper punching and cutting machine is a very advanced device that will help you with cutting and punching busbars simultaneously up to the size 15 × 160 mm.

INTRODUCTION

TECHNICAL INFORMATION

Busbar Punch Cutting Machine Features

Cutter station

The cutter station of this device is as precise and advanced as a whole busbar cutting machine.
The Cutting station of this device includes the following options:
– Precise cutting with high quality
– Perfect finishing after cutting
– Center oriented guide leads to the best result
Programmable Length Stopper cause high accuracy in positioning of cuts (optional)
– Could be programmed in absolute and incremental positions
– Programmable for 20 positions
– Rollers at two sides of cutter for ease of busbar movement
– Handy Length Stopper with high accuracy adjustment

Puncher station

Copper punching dies

In the punching process, the maximum busbar size that can be obtained is 15 x 160. If you use a larger size busbar, it may cause damage to the operator as well as damage to the punch section. The male and female dies are the main tools for punching and they are one of the most important and practical equipment of metal products and are made in different models. In all of them, the punching operation is done by two parts, the Male and female die, which punches the desired special shape from the raw sheet (Busbar). The location of the Male die is on the piston and the location of the female is on the main body. Do not use the punching station to make holes on materials such as iron, etc. because it will break the male and female dies and damage the machine.

Punch cutting machine indicator Control Panel

These panels are installed in both directions of the cutter and the puncher, and the relevant panel performs the manual and automatic movement of the longitudinal position of the cutter as well as the longitudinal and transverse position of the puncher.

HBC-CP160

MODEL

Cutting and punching  busbars simultaneously Function
Up to 160 x 15mm Cutting capacity
Circle dies:M6 up to M18 Oval and Rectangle Dies(optional) Punching capacity
Laser Pointer Puncher center finder
Handy Length Stopper
Programmable Length Stopper (Optional)
Length measuring in puncher and cutter
Two Separate Power Packs Double Acting System Hydraulic system
250 Bar Operating pressure
2 x 1.5 Kw Power rating
380 volt -3/50 Hz Voltage
Hydraulic Oil H68 – 70 Liters Oil
250x 110 x 100 (H) cm Main desk dimension
150 x 110 cm Roller desk dimension

FIND YOUR SOLUTION

FAQ's

Frequently asked questions

Is this device capable of bending busbars as well?

No, this device is only to cut and punch busbars, although we also have 3 in 1 busbar machines (cutting punching, bending) and single busbar bending machines.

How precise is this device?

All of the machines are very precise in all three functions but with the help of “programmable length stopper” you will be able to have an even more precise device.

What is a laser pointer?

The laser pointer will help you to find the center of holes easily and it will improve your accuracy during the punching process.

Why does this device has 2 separate power packs?

This option will help you to work on the device simultaneously at two stations at the same time without any disruption.

How to choose the type busbar machine?

Payapress will provide you with a wide range of busbar machines that you can choose among, proportional with your type of work.
