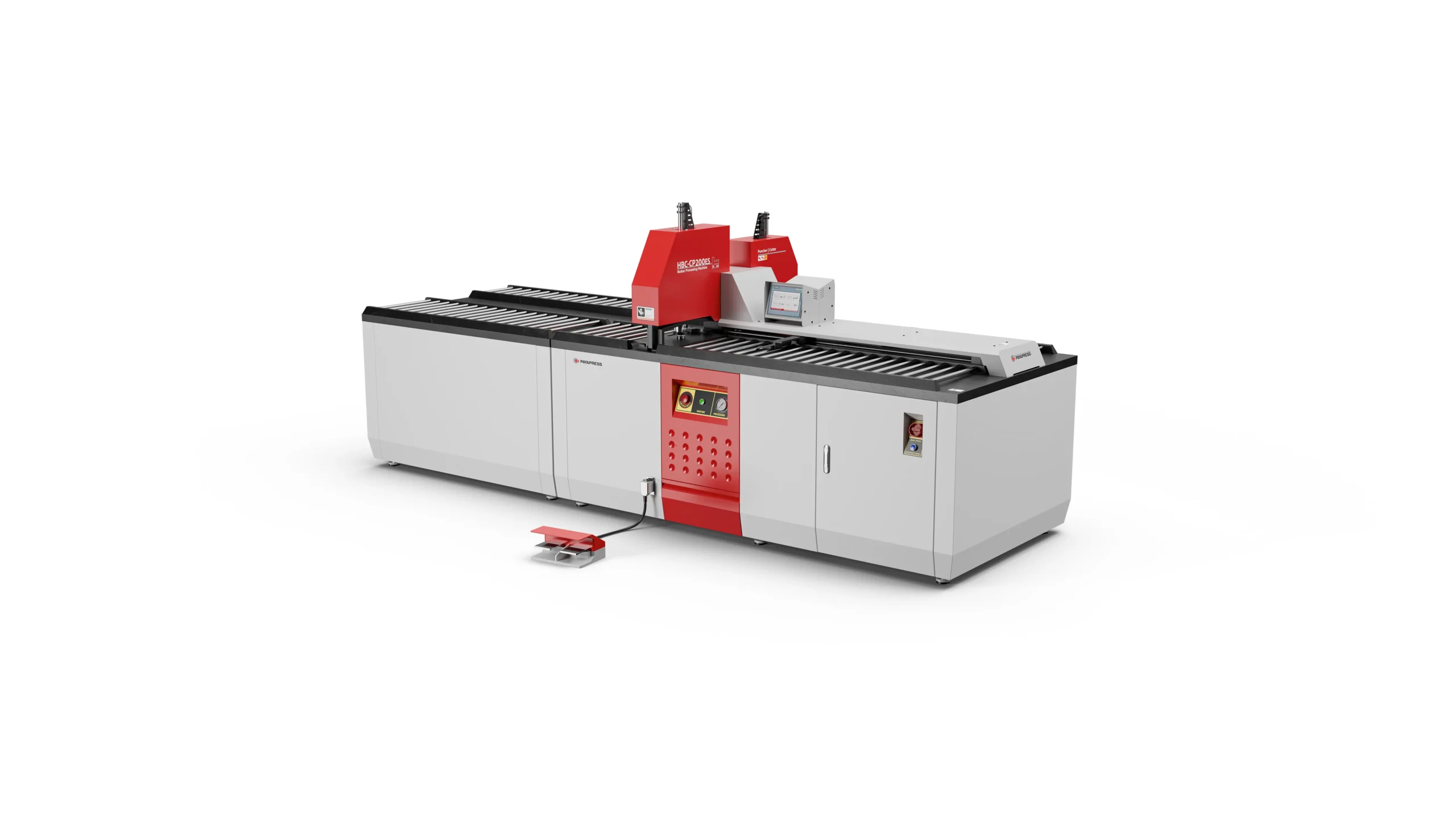

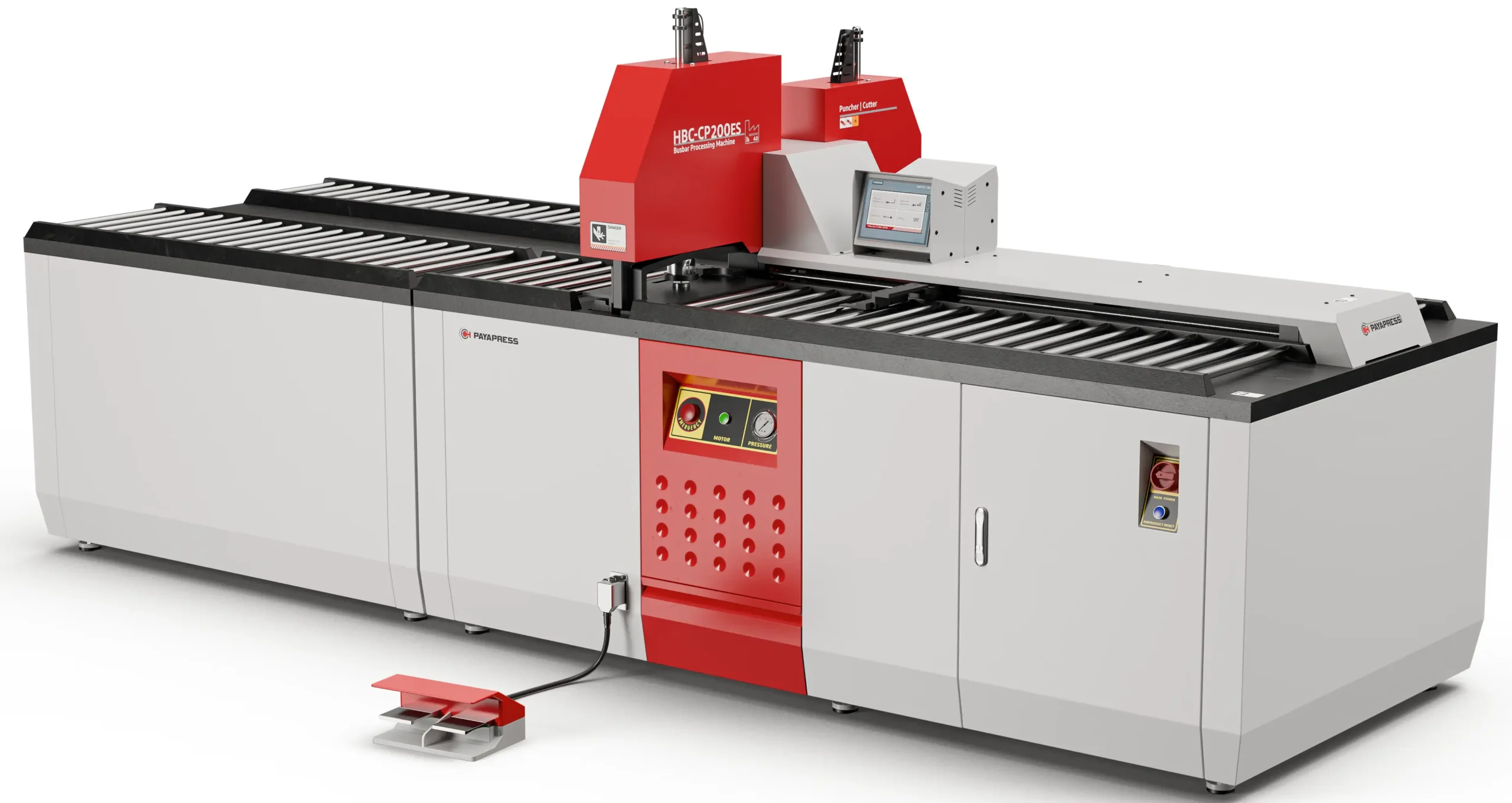

HBC-CP200 Machine

Why Choose the HBC-CP200 Machine?

A cut-and-punch machine proves its worth by never being the step a job has to wait for. The HBC-CP200 machine is designed around that goal, and these are the points that count most:

• Heavy sections, one machine. Bars up to 200 × 20 mm are cut and punched with no detour to a bigger line.
• Two stations, two power packs. Each pack is rated 4 kW and works at up to 200 bar, and the cutter and puncher each deliver 300 kN.
• Holes exactly where the drawing says. Hole spacing is held to ±0.1 mm, and round holes range from Ø4.5 to 27 mm.
• Trusted brands inside. Siemens PLC and HMI, Duplomatic valves from Italy, Schneider contactors and Autonics sensors.
• Ready for a connected shop floor. The machine is Industry 4.0 compatible.

HBC-CP200 Machine Versions: ES or EH

Both versions share the same two stations and the same 200 × 20 mm capacity. The difference lies in how the bar is positioned for each hole and cut.

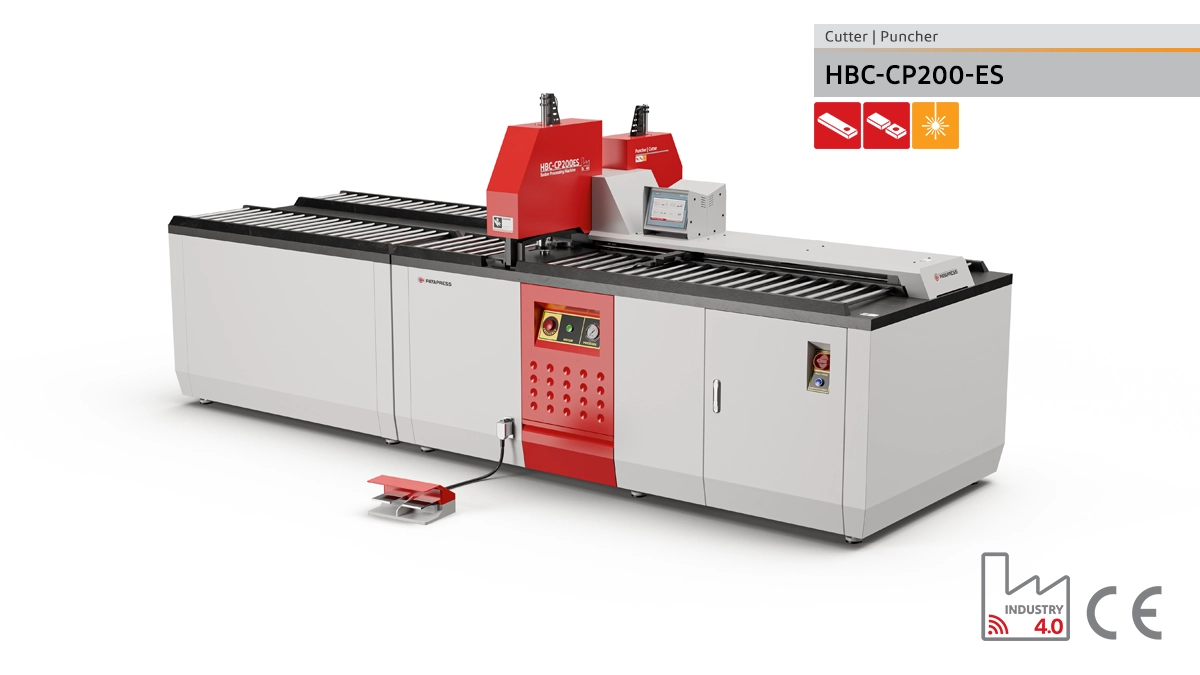

• HBC-CP200-ES: a programmable length stopper. Enter the positions on the 7-inch screen and the stopper travels to them on its own, at up to 2 m/min. Well suited to repeat parts and batch work.
• HBC-CP200-EH: a manual length stopper, set by the operator. Well suited to mixed and one-off jobs.

Holes and Cuts the HBC-CP200 Machine Can Make

Before a busbar goes anywhere else, it needs the right length and the right holes. The HBC-CP200 machine delivers both at its two stations:

• Round holes: from Ø4.5 to 27 mm, in bars up to 20 mm thick.
• Hole spacing: held to ±0.1 mm along the bar.
• Cuts to length: bars up to 200 × 20 mm, in lengths up to 4 m.

Oval and rectangular holes are available with optional dies, and the catalog lists each one.

Where the HBC-CP200 Machine Is Used

Every job starts as a straight bar and leaves the HBC-CP200 machine cut to length and punched, ready for the bender or the bolt:

• Main and distribution bars for low-voltage and medium-voltage switchgear
• Connection bars between circuit breakers, contactors and terminals
• Connection bars for transformers and generators
• Earthing and neutral bars
• Busbar sets for busway and power distribution units

Industries Served by the HBC-CP200 Machine

Wherever power moves through copper or aluminum bars, someone has to cut and punch them. You will find the HBC-CP200 machine in switchgear and electrical panel shops, transformer and busway plants, power stations and substations, renewable energy and battery storage projects, and data center and industrial power installations.

Is the HBC-CP200 Machine Right for Your Workshop?

This machine fits best when most of your busbar orders are cutting and punching, or when you already have a bender and need the rest of the line to keep pace. If that sounds like your workshop, the HBC-CP200 is a strong candidate: it cuts and punches bars up to 200 × 20 mm on one machine, holds hole spacing to ±0.1 mm, and on the ES version the stopper moves to each hole and cut position from a stored program. The frame is base-mounted, and the two hydraulic power packs run on a total motor power of 8.5 kW at 380 V, 50 Hz.

Look through the HBC-CP200 machine in the free catalog, or talk to a PAYAPRESS engineer about your own parts. Both start with the form on this page.
