Economic Busbar Machine HBC-EB120-EH

Bender station

To bend copper busbars up to 120*12 mm simultaneously

HMI

To give directions and receive feedbacks from the device

Handy Guide

To adjust X and Y axis manually

Electrical Panel

Including electrical components and units

Puncher Station

To punch copper busbars up to 120*12 mm one by one

Auxiliary Desk

To give more space to insert longer busbars

Station Selector

To adjust to the desired Function. (Cutting, Punching, Bending)

Cutter station

To punch copper busbars up to 120*12 mm simultaneously

Play Video Play Video

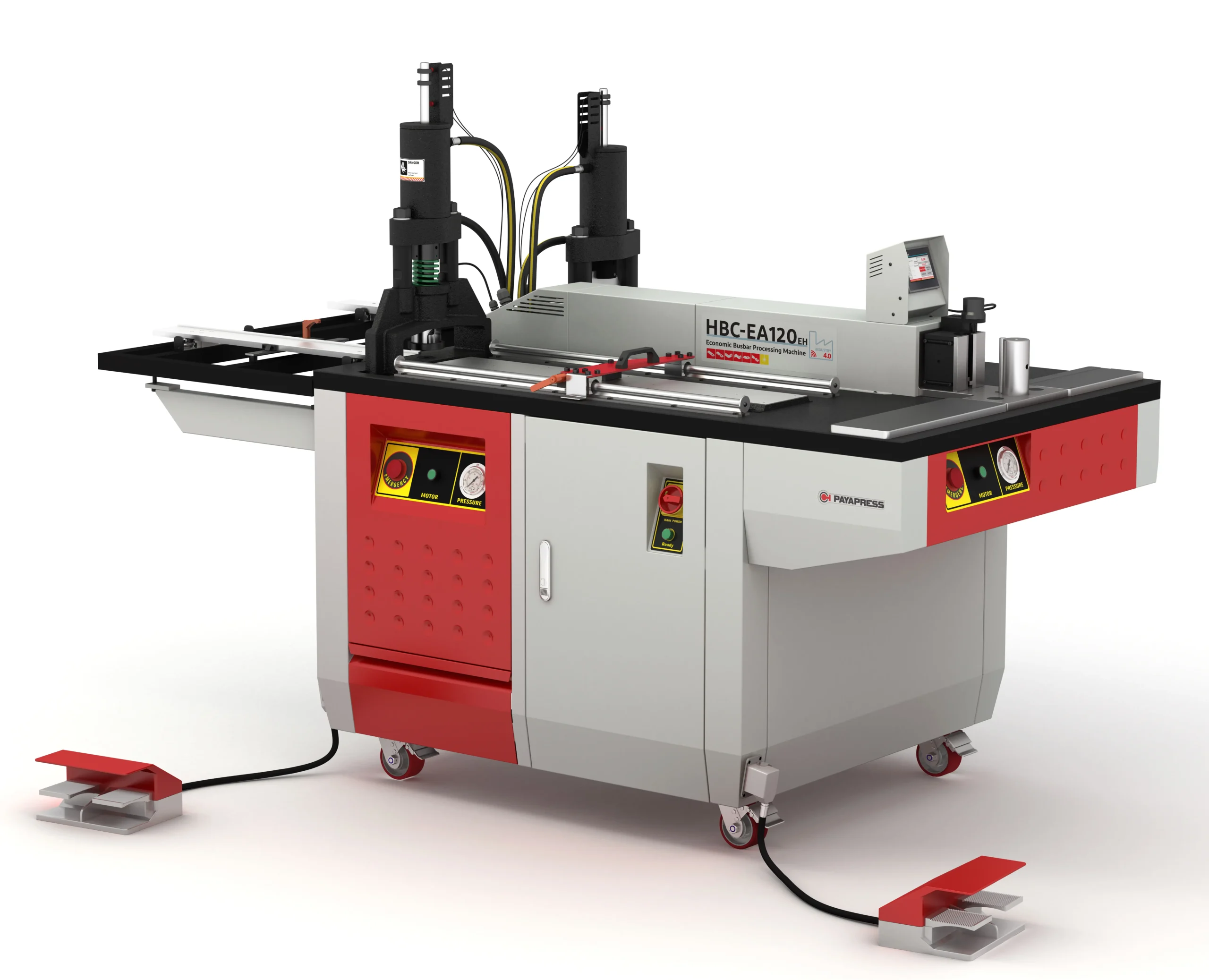

HBC-EA120 EH

Economic Busbar Machine

The HBC-EB120 EH model, belonging to the E series, presents itself as a more cost-effective 3-in-1 machine. Offering comparable functionality at a reduced price point, it represents an attractive option for clients seeking a complete and versatile solution without exceeding their budgetary constraints. While type A utilizes multiple power packs for simultaneous operation, the HBC-EB120 EH is equipped with a single power pack. This design dictates that operators must select the desired station via the integrated Station Selector.

INTRODUCTION

TECHNICAL INFORMATION

Economic Busbar Processing Machine Type B Features

Equipped with Station Selector to adjust to the desired Function. (Cutting, Punching, Bending)
Bender
– Bender controller equipped with spring back compensation system.
– Digital angle indicator leads to perfect bending result.
– Rotatable plates prevent fractions in busbar surface
Step mold (Optional)
– To create too closed bends in one stroke
– could be designed in different sizes by order
Edge bending mold (optional)
– To bend busbars from edge side
– Busbar size limit: 40 × 10 mm
Up to 90 degree and 50× 10 mm
Up to 45 degree
Twist bending mold (Optional)
– To twist busbars for special purpose
– Busbar size limits: 60 × 10 mm
Up to 90 degrees.
Puncher
Laser pointer helps to find the center of holes easily
– Easy and changeable dies
– Movable stripper plate prevents fraction in dies
– Double acting hydraulic system prevents sticking dies in busbar after punching
Guides could be moved up to center of dies
Rollers at two side of puncher for ease of busbar movement
Handy Length stopper with high accuracy adjustment
Circle dies from M6 up to M18
Oval and rectangle dies (Optional)
Cutter
– Precise cutting with high quality
– Perfect finishing after cutting
– Center oriented guide leads to the best result
– equipped with a centralizer clamp to help operator to find the center of the Busbar easily.
Rollers at two sides of cutter for ease of busbar movement
Handy Length Stopper with high accuracy adjustment

HBC-EB120EH	MODEL
Cutting, Punching and Bending Busbars, One by One	Function
Up to 120 x 12 mm	Bender capacity
Up to 120 x 12 mm	Cutting capacity
Circle Dies: M6 up to M18, Oval and Rectangle Dies (Optional)	Punching capacity
Electronic Controller, High Accuracy Encoder	Bender controller
Step Mold (Optional), Edge Bending Mold (Optional), Twist Mold (Optional), End-Bending Mold (Optional)	Bender molds
Laser Pointer	Puncher center finder
Handy Length Stopper (EH)	Length measuring
Single Power Pack, Double Acting System	Hydraulic system
200 Bar	Operating pressure
1.5 Kw	Power rating
380 Volt – 3/50 Hz	Voltage
Hydraulic Oil H68 – 30 Liters	Oil
238 x 110 x 100 (H) cm	Main desk dimension

FIND YOUR SOLUTION

FAQ's

Frequently asked questions

1- What differentiates this machine from the HBC-EA120 EH?

This model is a cost-effective alternative to the HBC-EA120 EH. The primary difference is its single hydraulic power pack, which allows for sequential operation, with one operator working at a single station at a time. It also features a station selector to dedicate power to the desired function.

2- Why is this machine more economical?

It is almost the same with the EA type but because of having only one power pack it costs less.

3- How is bending accuracy measured and controlled?

The bender is equipped with a digital angle indicator for precise bending results.

4- How is length accuracy maintained during cutting and punching?

A high-accuracy adjustable length stop ensures precise measurements for cutting and punching operations.

5- How can I get more Information about these machines?

You can fill up the sections below and email us. our experts will help you ASAP.

The other way is to go to "contact us" and make a call or send an email to the mentioned email on the page.
