Electrical Panel
Including electrical components and units
Bender station
To bend copper busbars up to 120*12 mm simultaneously
HMI
To give directions and receive feedbacks from the device
Station Selector
To adjust to the desired Function. (Cutting, Punching, Bending)
Cutter station
To punch copper busbars up to 120*12 mm simultaneously
Handy Guide
To adjust X and Y axis manually
Puncher Station
To punch copper busbars up to 120*12 mm one by one
Auxiliary Desk
To give more space to insert longer busbars
"*" indicates required fields

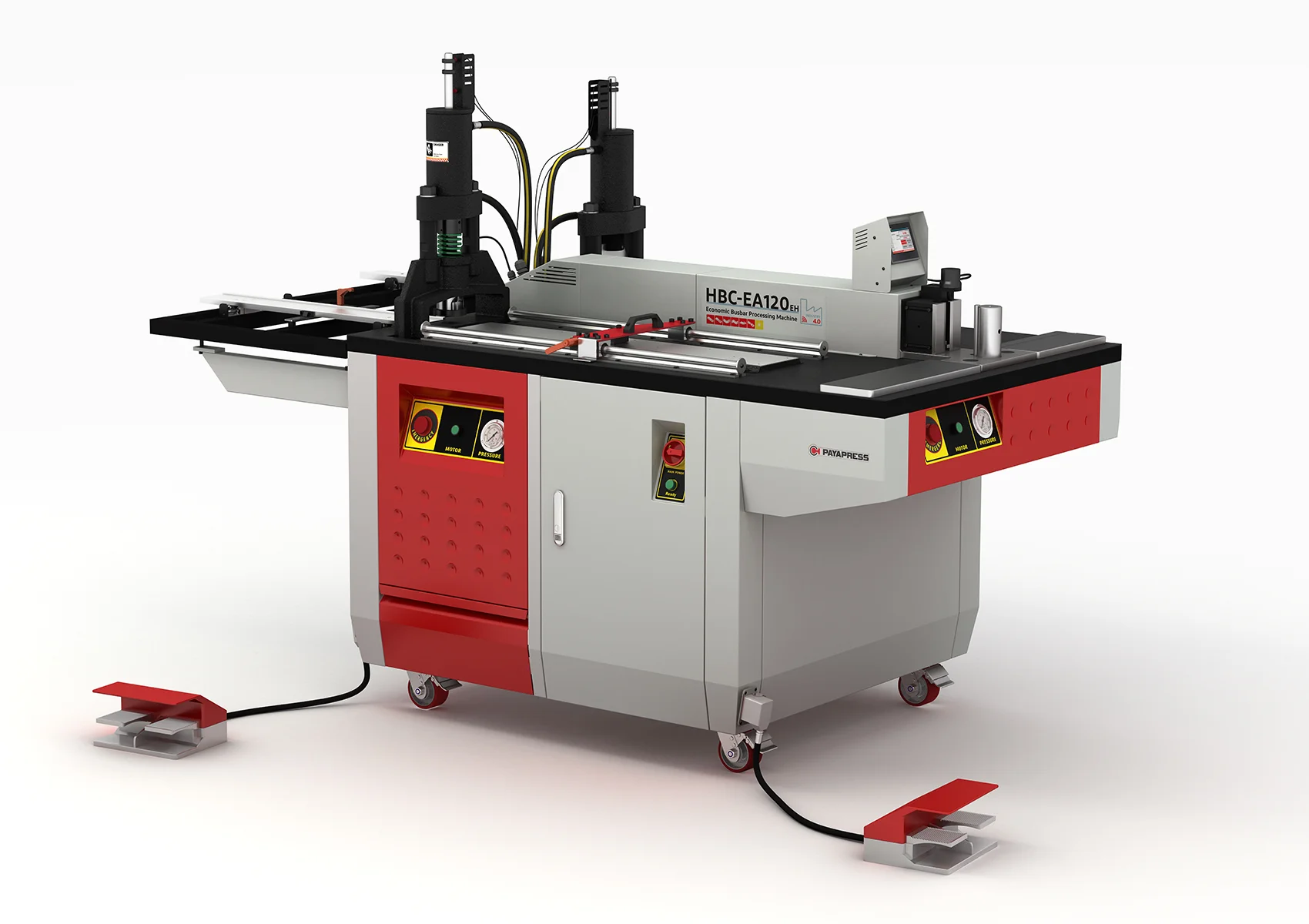

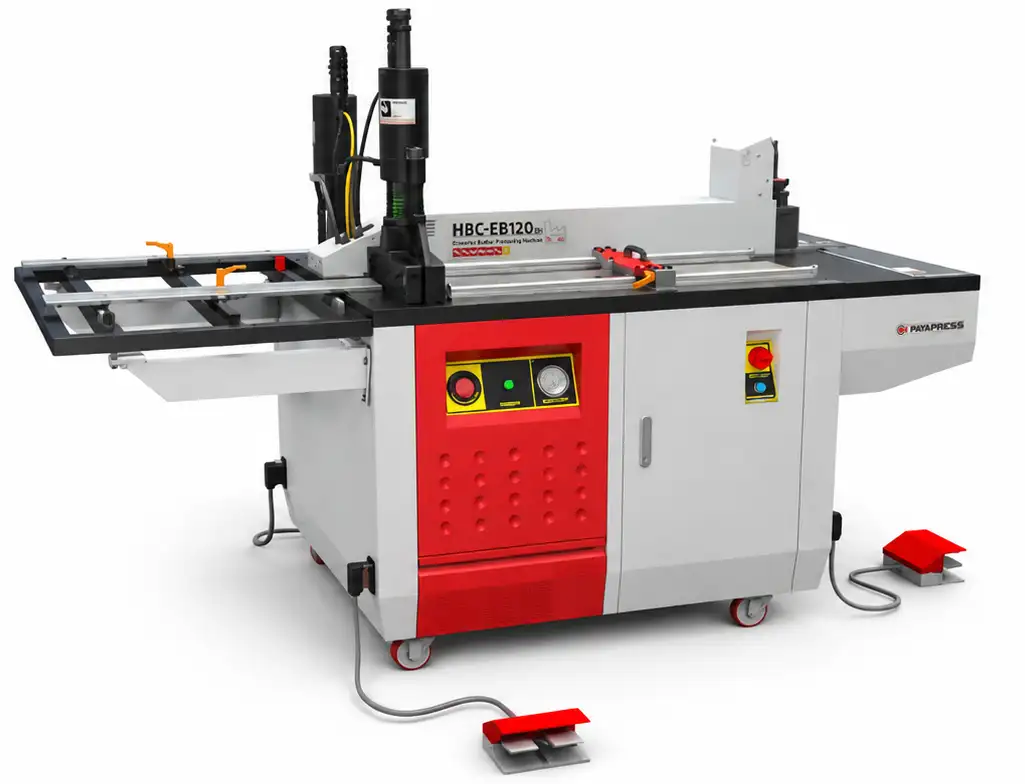

The 3-in-1 Economic Busbar Machine
presents a compelling solution for contemporary bus bar fabrication needs. By integrating cutting, punching, and bending functionalities into a single, robust device, it offers a streamlined approach to busbar processing suitable for both small workshops and large-scale factories. Its user-friendly design, coupled with an economical price point, democratizes access to advanced fabrication technology. Furthermore, the inclusion of three separate power packs empowers multiple operators to work concurrently on distinct stations. This capability significantly accelerates project timelines and ensures consistent, high-quality results in busbar fabrication, making it a valuable asset for businesses seeking to optimize efficiency and productivity.
INTRODUCTION
Economic Busbar Processing Machine Type A Features
Bender
– Bender controller equipped with spring back compensation system.
– Digital angle indicator leads to perfect bending result.
– Rotatable plates prevent fractions in busbar surface
Step mold (Optional)
– To create too closed bends in one stroke
– could be designed in different sizes by order
Edge bending mold (optional)
– To bend busbars from edge side
– Busbar size limit: 40 × 10 mm
Up to 90 degree and 50× 10 mm
Up to 45 degree
Twist bending mold (Optional)
– To twist busbars for special purpose
– Busbar size limits: 60 × 10 mm
Up to 90 degrees.
Puncher
Laser pointer helps to find the center of holes easily
– Easy and changeable dies
– Movable stripper plate prevents fraction in dies
– Double acting hydraulic system prevents sticking dies in busbar after punching
Guides could be moved up to center of dies
Rollers at two side of puncher for ease of busbar movement
Handy Length stopper with high accuracy adjustment
Circle dies from M6 up to M18
Oval and rectangle dies (Optional)
Cutter
– Precise cutting with high quality
– Perfect finishing after cutting
– Center oriented guide leads to the best result
– equipped with a centralizer clamp to help operator to find the center of the Busbar easily.
Rollers at two sides of cutter for ease of busbar movement
Handy Length Stopper with high accuracy adjustment

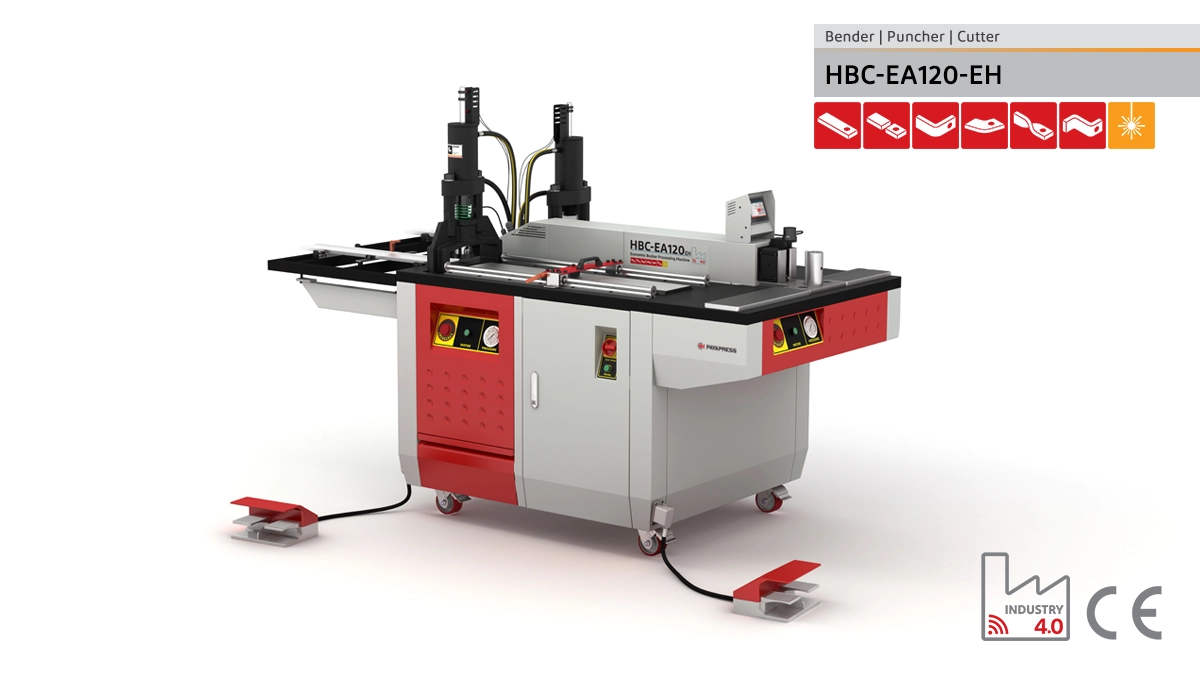

HBC-EA120EH | MODEL |
|---|---|
| Cutting, Punching and Bending Busbars Simultaneously | Function |
| Up to 120 x 12 mm | Bender capacity |
| Up to 120 x 12 mm | Cutting capacity |
| Circle Dies: M6 up to M18, Oval and Rectangle Dies (Optional) | Punching capacity |
| Electronic Controller, High Accuracy Encoder | Bender controller |
| Step Mold (Optional), Edge Bending Mold (Optional), Twist Mold (Optional), End-Bending Mold (Optional) | Bender Molds |
| Laser Pointer | Puncher center finder |
| Handy Length Stopper (EH) | Length measuring |
| Three Separate Power Packs, Double Acting System | Hydraulic system |
| 200 Bar | Operating pressure |
| 3 x 1.5 Kw | Power rating |
| 380 Volt – 3/50 Hz | Voltage |
| Hydraulic Oil H68 – 70 Liters | Oil |
| 238 x 110 x 100 (H) cm | Main desk dimension |
Frequently asked questions
This machine allows operators to bend, cut, and punch busbars up to 120mm x 12mm.
Yes, the machine supports simultaneous operation across all three stations, allowing up to three operators to work at the same time.
