A Revolution in Electrical Cabinet Door Manufacturing with Cold Forming Technology
PAYAPRESS introduces the ColdForm Corner Machine, a breakthrough in the manufacturing of electrical cabinet doors. By completely eliminating the welding process at the corners and using advanced cold forming technology, this machine not only improves the final product quality but also significantly enhances production efficiency.
Innovation in the Manufacturing Process
In conventional methods, sheet metal corners are cut to create the desired angle and then welded together. This approach causes visible seams, requires additional finishing processes like grinding, and increases production time and cost.

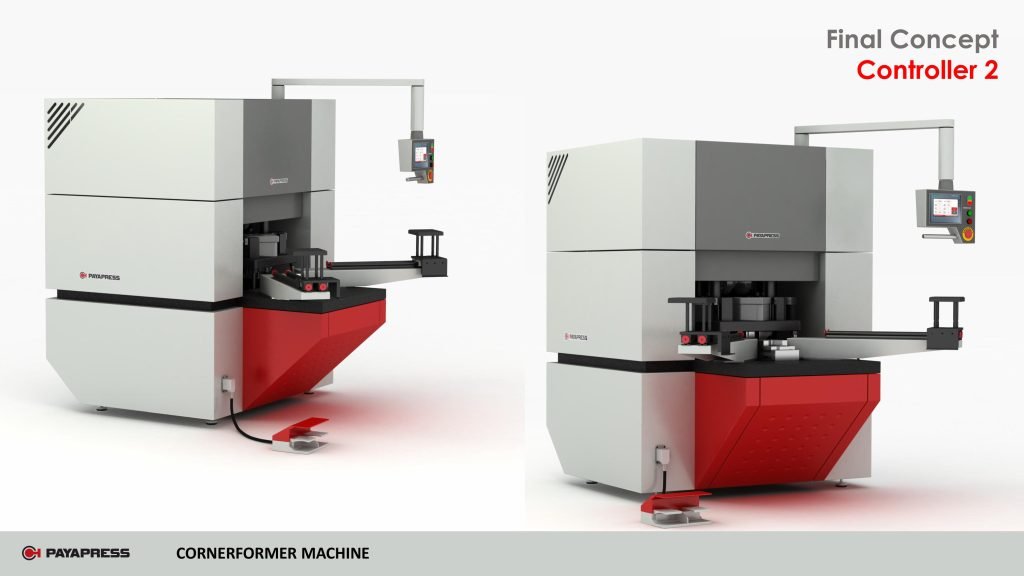

The ColdForm Corner Machine forms the corners precisely and continuously, without any cutting or welding. This process results in seamless surfaces, greater structural strength, and the elimination of time-consuming post-processing steps.
Further exploration of Complete Guide to Busbar Fabrication can be found in the following recommended reading.
"*" indicates required fields
Key Technical Features
- Automatic Punch Rotation
- Supports various sheet thicknesses (1.25 mm, 1.5 mm, and 2 mm)
- Stepper motor for precise punch angle control
- Secure locking system with pneumatic pin after each rotation
- Quick and Easy Punch Replacement
- No need for a highly skilled operator
- Simply loosen one screw, place the punch, and reference it

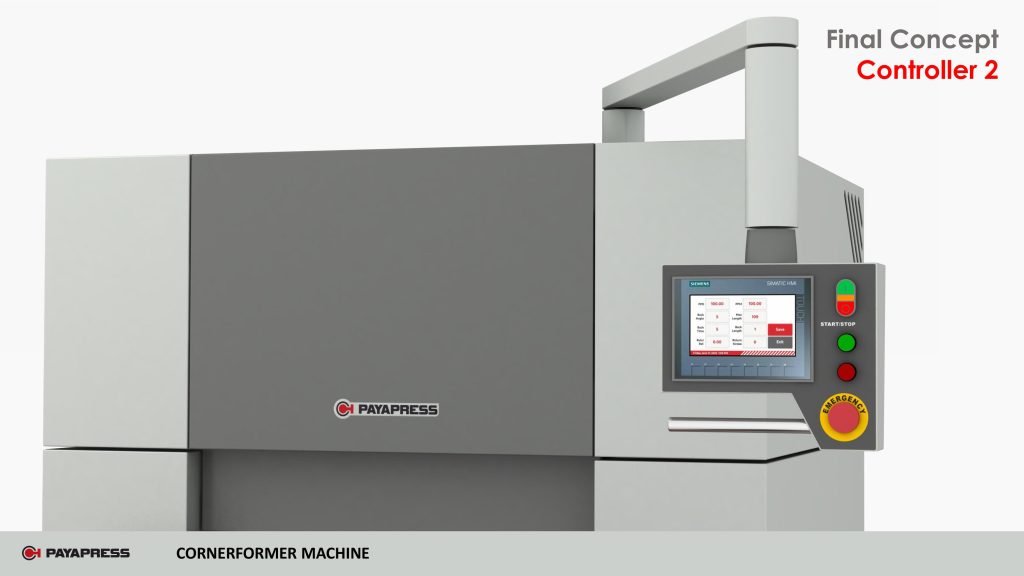

- Advanced Control System
- Equipped with NC (Numeric Control) and PLC
- HMI touchscreen for displaying essential data and operational settings
- Precise configuration of functions such as lubrication timing
- Modern Industrial Design
- Attractive and professional appearance
- Sturdy mechanical structure for long service life
Competitive Advantages Over Similar Machines
Compared to simplified market alternatives—such as designs relying on mechanical flexibility caused by intentionally weakened columns—the PAYAPRESS ColdForm Corner Machine offers:
- Higher bending precision
- Longer component and bearing life through robust engineering
- Faster and easier punch alignment and setup
Limitations & Optimal Use Cases
This machine is best suited for mass production and series manufacturing. In small workshops with frequent variations in sheet size and thickness, the benefits may not be fully realized, and punch changeover time could become a limitation.
However, in large, integrated production lines, eliminating welding and speeding up corner forming can result in substantial time and cost savings.
If the information related to corner former was interesting and informative to you, researching about Busbar Manufacturing Process can be very engaging.
Conclusion
The PAYAPRESS ColdForm Corner Machine provides an innovative, cost-effective solution for electrical cabinet manufacturers seeking higher quality, reduced costs, and improved productivity. With its precise engineering, advanced control system, and automatic punch rotation, it represents a major step forward compared to traditional methods, positioning itself as a competitive force in the electrical industry manufacturing sector.
For more information on advanced manufacturing technologies and their impact on the electrical industry, check out this comprehensive guide from Advanced Manufacturing Technologies by the American Society of Engineering. It covers cutting-edge techniques that align with the innovations like the ColdForm Corner Machine from PAYAPRESS, helping manufacturers enhance productivity and quality in their operations.
Frequently Asked Questions
What materials and sheet metal thicknesses can the ColdForm Corner Machine process?
The machine supports a range of sheet metal thicknesses, including 1.25 mm, 1.5 mm, and 2 mm, and is compatible with various metals typically used in electrical cabinet manufacturing.
How long does it take to replace the punch tool on the ColdForm Corner Machine?
The punch replacement process is quick and tool-free, requiring only a simple three-step procedure: loosen one screw, place the new punch, and reference it to the datum. This minimizes downtime and enhances production efficiency.
What are the key advantages of using the ColdForm Corner Machine over traditional welding methods?
Unlike traditional welding, the ColdForm Corner Machine eliminates the need for cutting, welding, or grinding, reducing labor costs and production time while delivering higher precision and better surface quality without the need for post-processing.
Is the ColdForm Corner Machine suitable for small-scale operations?
While the ColdForm Corner Machine is ideal for high-volume, series manufacturing, small workshops with frequent changes in sheet dimensions and thickness may experience some setup delays. It’s best suited for manufacturers with consistent production volumes.
