Electrical Busbars for Power Distribution Systems: Types, Design and Applications in Modern Facilities

Why Are Electrical Busbars for Power Distribution Systems Very Important in High and Low Voltage Systems?

Electrical busbars for power distribution systems are crucial as the backbone of power distribution in high and low voltage systems for the efficient distribution of electrical energy. Their superior conductivity, design flexibility and safety features make them a preferred solution in a variety of applications.

If the information related to topic Power Distribution Systems was interesting and informative to you, researching topic Busbars in Modern Electrical Systems can be very engaging.

Electrical Busbars for Power Distribution Systems: What Are They?

Electrical busbars for power distribution systems consist of metal (predominantly copper or aluminum) and conduct electricity safely and with minimal energy loss from one point to another. They are often used instead of wires or cables, especially in high current distributions, high voltage equipment and low voltage installations. Many busbars in switchgear are uninsulated to improve heat dissipation and facilitate the installation of connections. At the same time, they are often installed in protected busducts or with insulated covers to ensure touch protection and increase safety.

Electrical busbars for power distribution systems are used in:

• Switchgear and control panels: Distribution of electricity to various circuit breakers and control devices.
• Power substations: Connection of transformers, circuit breakers and transmission lines.
• Industrial machinery: Power supply for motors, drives and other high-performance equipment.
• Data centers: Reliable power distribution for critical servers and network infrastructure.
• Renewable energy systems: Connection of solar modules, wind turbines and energy storage devices.
• Electric vehicle charging stations: Power distribution to multiple charging points.

If you are looking for more information about topic Charging station, it is recommended not to miss reading this article.

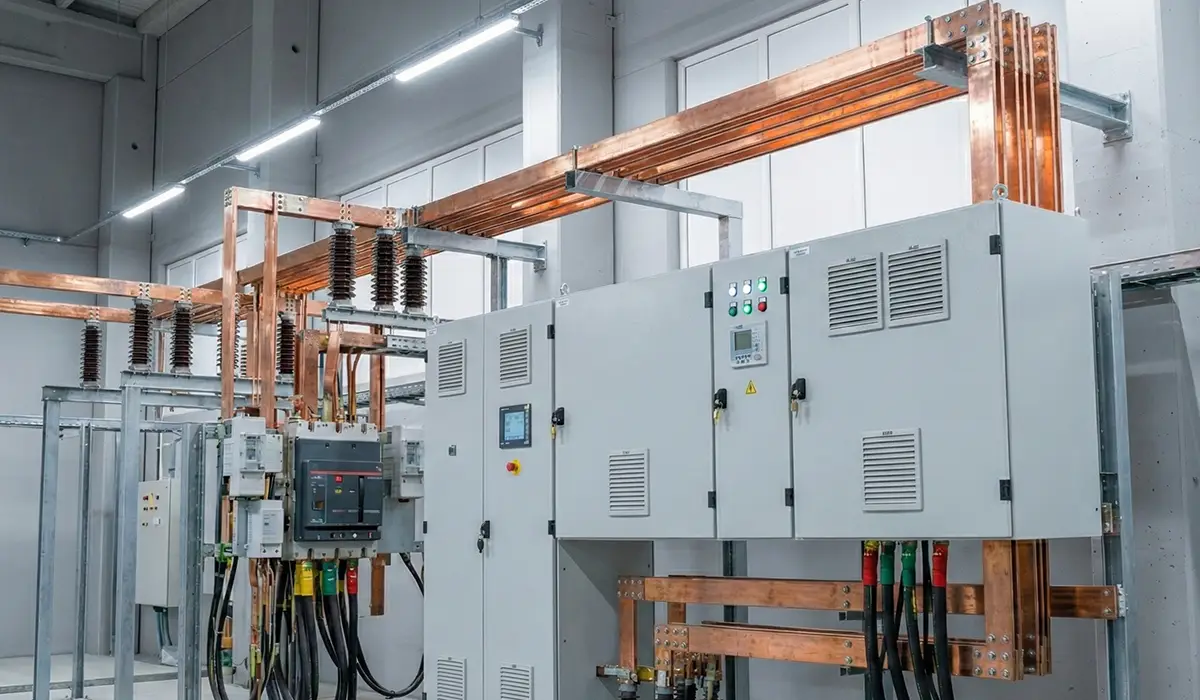

Why Electrical Busbars for Power Distribution Systems Are Used in Switchgear Cabinets

Electrical Busbars for Power Distribution Systems – A Comparison Between Cables and Busbars in Switchgear Cabinets

In switchgear cabinets, electrical busbars for power distribution systems are typically used instead of cables for currents over 125 amperes. The reason for this lies in the large size of the required cables and the high current. For example, a 70-AWG cable cannot be bent over a distance of ten centimeters because it is not flexible enough and cannot be routed to the desired location.

Overview of Power Distribution Systems

Electrical power distribution is the final step in energy supply, where electricity travels from the transmission system to consumers. Electrical busbars for power distribution systems play a key role in this process, as they efficiently conduct electricity from one point to another and ensure stable distribution in substations and distribution facilities. Substations reduce the voltage from the transmission level to medium voltage (2 kV to 33 kV) and transport it via primary distribution lines to distribution transformers. These transformers reduce the voltage to the utilization voltage for lighting, industry and household appliances. Several customers can be supplied from one transformer via secondary distribution lines. Larger electricity consumers are directly connected to the primary or sub-transmission level.

Your deep dive into Topic Electric Power Distribution isn’t complete without the essential insights found in this article

Planning, Implementation and Operation of Modern Electrical Power Distribution Systems

The design and implementation of electrical power distribution systems requires profound expertise as well as precise consideration of both current and future requirements. Electrical busbars for power distribution systems are an indispensable component here, as they ensure reliable and efficient distribution of electricity. Contemporary electrical power distribution systems employ advanced protection and control technologies to ensure optimized energy utilization while minimizing operational failures. Regular maintenance and periodic inspection of electrical power distribution systems are of essential importance to ensure compliance with current safety and performance standards.

Your deep dive into Topic Electrical Power Distribution Applications isn’t complete without the essential insights found in this article

Basic Architecture of Power Distribution (Radial, Ring and Meshed Systems)

Radial Power Distribution System

A radial power distribution system is a power distribution network in which each circuit originates from a common source or substation and branches radially to supply individual consumers and customers. Electrical busbars for power distribution systems are often integrated here in the central feeder to ensure effective and safe power distribution. It has a spoke and wheel-shaped structure with a central feeder from which several substations branch off, supplying multiple buildings.

In this system, the distribution transformers form a ring. The ring circuit begins at the busbars of the substation and returns to the substation after supplying the desired area. Electrical busbars for power distribution systems are an important component of the ring circuit, as they serve as a reliable connection between the distribution transformers and the distribution points. Ring distribution systems are designed so that each distribution transformer is connected to two feeders that use different paths. These feeders form a circle that begins at the busbars of the substation, passes through the supply area, feeds the distribution transformers and returns to the busbars of the substation.

Meshed Power Distribution System

Radial and ring distribution systems can be easily expanded into meshed networks. In meshed systems, electrical busbars for power distribution systems can play an important role in the seamless integration of energy sources and efficient load distribution. This system can be integrated with distributed generation units (DG) and renewable energy sources. Additional advantages of this configuration are:

• Accurate power distribution between consumers
• Higher short-circuit strength compared to radial systems
• Relatively balanced voltage profile and high reliability
• Conversion to an island grid possible

Types of Electrical Busbar Systems in Power Distribution

Electrical busbars for power distribution systems enable efficient distribution of electricity. The combination of these components in a switchgear not only improves safety but also performance significantly. To optimize the integration of internal components, modern switchgear uses advanced technologies.

Electrical Busbars in Switchgear and Distribution Boards

• Horizontal Busbars: Horizontal busbars are installed in switchgear cabinets. Their main function is to transmit high electrical currents between input and output lines, instead of using multiple cables. These busbars reduce losses, optimize space requirements and increase safety in industrial switchgear cabinets. They carry the same currents and frequencies.
• Vertical Busbars: Vertical busbars are installed in a vertical position in switchgear or distribution cabinets. They distribute electricity upwards or downwards in multi-story buildings or tall cabinets to ensure efficient power supply to individual floors or levels. At the same time, they reduce wiring effort, as they serve as a central distributor for numerous branches.
• Neutral Busbars: Neutral busbars (or neutral conductor busbars) are conductive metal strips in electrical distributions that serve as a central collection point for the neutral conductors (neutral wires) of many individual circuits to simplify wiring and ensure a safe return path for the current.
• Grounding Busbars: In switchgear cabinets, the grounding bar is connected to all metal parts of the cabinet as well as to the connected equipment. This grounding provides a low-resistance path for stray and overcurrents, thus preventing hazards such as electric shocks, fires and equipment damage.

If you are looking for more information about topic Distribution board, it is recommended not to miss reading this article.

Busbar Trunking Systems for Low Voltage Power Distribution

Electrical busbars for power distribution systems in the form of busbar trunking systems are a method of power distribution in which shaped aluminum or copper busbars, manufactured with a busbar bending machine, are used to distribute energy within a building. Busbar systems were originally developed to provide an alternative to traditional methods of power distribution and solve many of the long-standing problems with cables.

Regarding the higher strength of electrical busbars for power distribution systems compared to cables, electrical busbars offer significantly better resistance than cables, which is particularly evident in short-circuit tests. Within the busbar housing, the distance between the individual conductors is minimal, which reduces the inductive reactance. The flat profile of a busbar also promotes optimal current density distribution and reduces resistance. Therefore, the voltage drop in a busbar section is typically lower than in comparable cable sections.

If the insights you gained from topic Busbar Trunking were intriguing and informative, exploring topicAdvantages of Busbar might be of great interest to you as well.

Electrical Busbars for Power Distribution Systems: Applications in Medium Voltage Installations and Busbar Duct Systems

Electrical busbars serve as the vital backbone of modern power distribution, offering unmatched reliability for medium voltage installations. This overview explores how integrated busbar duct systems optimize energy flow while enhancing safety and spatial efficiency

Medium Voltage Busbars in Switchgear

The design of electrical busbars for power distribution systems in medium voltage switchgear is crucial for the safe and efficient operation of power systems. They connect various components within the switchgear and form the main path for electricity flow. Their performance directly affects the stability of the entire distribution system.

The busbar design must meet strict standards that focus on thermal performance, mechanical strength, material selection and electrical integrity. These guidelines, established by international and national standardization organizations such as IEC and ANSI/IEEE, ensure that electrical busbars for power distribution systems operate stably and withstand short-circuit loads. Modern engineers must understand and strictly follow these principles to ensure the long-term reliability of switchgear.

Medium Voltage Busbars and Connections Between Transformers and Switchgear

Design differences between electrical busbars for power distribution systems (busducts) and classic busbar installations: Busducts are a closed, modular solution for power distribution that protects busbars and provides additional safety. Unlike open busbars that are installed unprotected, busducts are more resistant to environmental influences and offer higher mechanical stability. They are often used for the efficient distribution of large currents between transformers and switchgear and are particularly advantageous in compact installations or in safety-critical areas. Busducts thus offer a more flexible and safer solution than classic busbars.

Copper vs. Aluminum Busbars in Power Distribution

Depending on where you’re using this sentence (like an article or a technical report), you might want to adjust the wording slightly

Electrical and Mechanical Properties

Comparison of electrical busbars for power distribution systems made of copper and aluminum in terms of conductivity, mechanical strength and other properties:

• Conductivity: Copper has higher electrical conductivity than aluminum, which means that copper busbars require a smaller cross-sectional area for the same current requirement. Aluminum therefore requires a larger cross-sectional area to transport the same amount of current, resulting in larger dimensions.
• Mechanical Strength: Copper has higher mechanical strength, making it more robust to physical stress. Aluminum is lighter, but also more susceptible to mechanical stress, making it less stable for certain applications when heavily loaded.
• Other Properties: Copper has better stability in connections and is less prone to corrosion compared to aluminum, which is particularly important for long-term applications in highly stressed environments. However, aluminum has the advantage of lower weight and lower material price.

Cost, Availability and Applications

Cost and availability of electrical busbars for power distribution systems made of copper vs. aluminum and their applications:

Cost: Aluminum is significantly cheaper than copper. The price for copper is approximately 9,771 USD per ton, while aluminum is 2,606 USD per ton (July 2025, World Bank).

Availability: Aluminum is widely available on the market and more readily available than copper. Copper has higher demand, which also affects its price.

Applications:

• Copper busbars are often used in critical high-current applications where stability and long service life are required, such as in high-frequency switchgear and industrial machinery.
• Aluminum busbars are particularly suitable for applications where cost savings and lighter weight are decisive due to their lower material costs, e.g., in large-scale installations and less demanding applications.

If you are looking for more information about topic Comparing the Benefits of Copper vs Aluminum, it is recommended not to miss reading this article.

ectrical Busbars in Power Distribution Systems

• Higher Current Capacity: Busbars can handle significantly higher currents than conventional cables due to their larger cross-sectional area and superior conductivity.
• Reduced Voltage Drop: The low resistance of busbar materials ensures minimal voltage drop across the distribution system, maintaining power quality.
• Improved Heat Dissipation: The design and material properties of busbars allow for better heat dissipation, reducing the risk of overheating and system failures.
• Space Efficiency: Busbars require less space than equivalent cable installations, making them ideal for compact switchgear and control panels.
• Enhanced Safety: Properly designed and installed busbars with appropriate insulation and protection provide superior safety compared to cable systems.
• Flexibility and Modularity: Busbar systems can be easily modified and extended to accommodate changing power requirements.
• Lower Installation Costs: Despite higher material costs in some cases, busbars often result in lower total installation costs due to reduced labor and simplified installation.

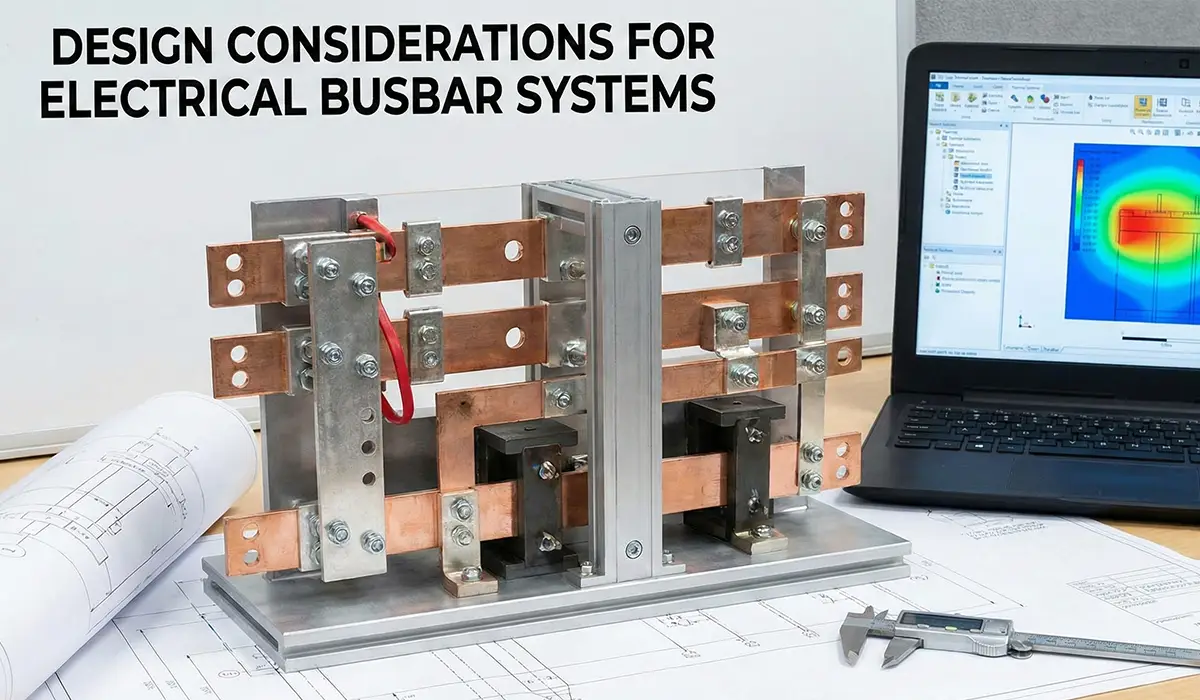

Design Considerations for Electrical Busbar Systems

Proper design of electrical busbars for power distribution systems requires careful consideration of multiple factors:

Thermal Considerations

The thermal performance of busbars must be calculated to ensure they can handle the expected current load without exceeding safe temperature limits. Factors include ambient temperature, ventilation, current density, and duty cycle. Proper thermal design prevents overheating, extends equipment life, and maintains system reliability.

Mechanical Strength and Support

Busbars must be mechanically designed to withstand short-circuit forces, thermal expansion, and physical vibrations. Proper support spacing, material thickness, and mounting methods are critical to prevent mechanical failure. Engineers must calculate the electromagnetic forces during fault conditions and ensure adequate mechanical support.

Electrical Performance

Electrical design considerations include current-carrying capacity, voltage drop, power losses, and impedance characteristics. The busbar configuration affects the overall system performance and must be optimized for the specific application requirements.

Safety and Protection

Safety features such as insulation, segregation, touch protection, and arc flash mitigation must be integrated into the busbar design. Compliance with relevant safety standards and regulations is mandatory to protect personnel and equipment.

For further information, it is highly recommended to read the article: Design Considerations for Electrical Busbar Systems.

Installation and Maintenance Best Practices

Proper installation and regular maintenance are essential for the long-term performance and safety of electrical busbar systems:

Installation Guidelines

• Follow manufacturer specifications and industry standards during installation
• Ensure proper torque values for all bolted connections
• Verify correct phase identification and connection sequence
• Inspect all joints and connections for proper contact and alignment
• Apply appropriate anti-corrosion treatments where required
• Conduct thorough testing before energization

Maintenance Requirements

• Regular visual inspections for signs of overheating, discoloration, or physical damage
• Periodic thermographic surveys to detect hot spots and connection issues
• Torque verification of bolted connections at recommended intervals
• Cleaning of busbar surfaces to remove dust and contaminants
• Inspection of insulation and protective coatings for degradation
• Documentation of all maintenance activities and findings

Standards and Compliance Requirements

Electrical busbars for power distribution systems must comply with various international and national standards to ensure safety, reliability, and performance:

International Standards

• IEC 61439: Low-voltage switchgear and controlgear assemblies
• IEC 62271: High-voltage switchgear and controlgear
• IEC 60364: Low-voltage electrical installations
• IEEE C37: Power switchgear standards

If the information related to topic International Standards was interesting and informative to you, researching topic IEC, UL, and CE Standards can be very engaging.

Testing and Certification

Busbar systems must undergo rigorous testing including:

• Temperature rise tests
• Short-circuit withstand tests
• Dielectric strength tests
• Mechanical endurance tests
• Protection degree verification (IP rating)

Compliance with these standards ensures that busbars meet safety requirements and perform reliably under specified operating conditions.

Conclusion

Electrical busbars for power distribution systems play an indispensable role in the efficient and safe distribution of electrical energy in modern applications, from high-voltage installations to industrial control panels. Their superior conductivity, mechanical strength and design flexibility make them the preferred choice in power distribution, especially in high-current environments. Whether in switchgear cabinets, substations or industrial machinery, busbars offer numerous advantages over conventional cables, including lower voltage drop and more efficient heat dissipation.

The selection of the right material – copper or aluminum – as well as compliance with international standards and safety regulations such as IEC, UL and CE, are crucial for the long-term performance and safety of busbars. In combination with modern manufacturing technologies such as bending machines and notching machines, busbars can be manufactured precisely for specific applications, which further increases their efficiency and reliability in power distribution.

Thanks to the diverse application possibilities in medium voltage installations, trunking systems and switchgear cabinets, busbars offer not only a solution for reliable energy distribution, but also a future-proof technology that meets the requirements of the energy industry and Industry 4.0.

Overall, electrical busbars for power distribution systems contribute significantly to increasing efficiency, safety and sustainability in modern power distribution systems.

Frequently Asked Questions

What Role Do Switchgear Cabinets Play in Industry?

In electrical systems, industrial switchgear cabinets play a central role in factories and production lines. They are essential for every industrial facility as they ensure the control, distribution and protection of electrical current as well as the safe monitoring of the operation of machines and equipment. They are particularly important in power distribution systems, where electrical busbars for power distribution systems enable efficient and safe power distribution.

What Is the Main Difference Between Trunking and Cable Tray?

Trunking has a significantly higher capacity than a cable tray. Additionally, it can be equipped with accessories such as sockets, switches, elbows, T-pieces and partitions. Cable trays are mainly used for simple cable and wire routing in residential or small networks. For this reason, there are usually no branches or outlets in cable trays.

How Do Trunking Systems Improve Power Distribution in Larger Installations?

Trunking systems, especially in combination with electrical busbars for power distribution systems, offer a more robust and flexible solution for larger installations. These systems enable more efficient and safer distribution of electricity in extensive infrastructures.

Why Are Copper or Aluminum Used in the Construction of Switchgear?

Solid busbars or electrical busbars for power distribution systems serve as the central distributor in switchgear. To achieve the lowest possible voltage drop or transmission loss, conductive materials such as copper or aluminum are used for busbars.

What Are Cable Ducts?

Cable ducts are containers, mostly made of PVC, that cover cables or rails. Specific cable ducts are manufactured for switchgear cabinets that are suitable for cable routing within switchgear cabinets. These ducts have slots that allow cables or electrical busbars for power distribution systems to be routed precisely and neatly at the designated locations.

What Is the Typical Lifespan of Busbar Systems?

With proper installation and regular maintenance, busbar systems can last 25-40 years or more. The lifespan depends on factors such as operating environment, current loading, material quality, and maintenance practices. Copper busbars generally have longer service life than aluminum due to their superior corrosion resistance and mechanical properties.

Can Existing Cable Systems Be Replaced with Busbars?

Yes, existing cable systems can be retrofitted with busbar systems, particularly in applications where current requirements have increased or where space optimization is needed. However, such upgrades require careful engineering analysis, proper system design, and compliance with relevant electrical codes and standards.

How Do Environmental Conditions Affect Busbar Performance?

Environmental factors such as temperature, humidity, corrosive atmospheres, and pollution levels significantly impact busbar performance. In harsh environments, special protective coatings, increased insulation ratings, or enclosed busduct systems may be required. Proper environmental assessment during design phase ensures optimal material selection and protection methods.
